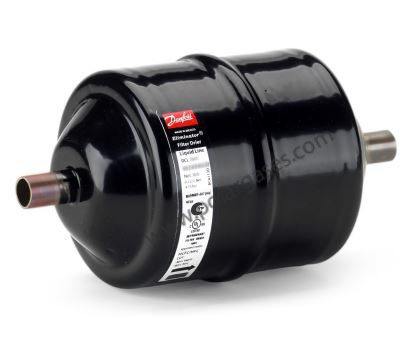

ELIMINATOR Hermetic Filter Drier

  • All ELIMINATOR driers have a solid core with binding material held to an absolute minimum.
  • There are two types of ELIMINATOR cores. Type DML driers have a core composition of 100% Molecular Sieve, while type DCL contain 80% Molecular Sieve with 20% activated alumina.
  • ELIMINATOR type DML driers are designed for applications requiring the highest moisture capacity.
  • ELIMINATOR type DCL driers are designed for applications requiring high moisture capacity and acid adsorption capacity.
  • Available with solder (pure copper) and flare connections.

Features

Spares

The Core type DML

  • 100% 3Å Molecular Sieve core.
  • High drying capacity minimizing the risk of acid formation (hydrolysis).
  • Recommended for use with HFO, HC, HFC and HCFC refrigerants.
  • Will not deplete oil additives.

The Shell

  • UL approved for MWP 667 psig.
  • Available with solder (pure copper) and flare connections.
  • Corrosion resistant powder-painted finish. Special coating for marine applications available upon request.
  • Allows installation with any orientation provided the arrow is in the flow direction.
  • Available in sizes 3 – 75 cubic inches.

The Core type DCL

  • 80% 3Å Molecular Sieve with 20% activated alumina.
  • Perfect core blend for systems that operate at high condensing temperatures and require high drying capacity.
  • Recommended for use with HFO, HC, HFC and HCFC refrigerants.

The Filter

  • 25 μm (0.001 in.) filter provides high retention with minimal pressure drop.
  • Thermally stable up to 250 °F.

Approvals

UL US, file no. SA 6398 PED 97/23/EC - a3p3 Compliant with ATEX hazard zone 2

Application

ELIMINATOR® hermetic filter driers protect refrigeration and air-conditioning systems from moisture, acids, and solid particles.

With these contaminants eliminated, systems are safer from harmful chemical reactions and from abrasive impurities.
